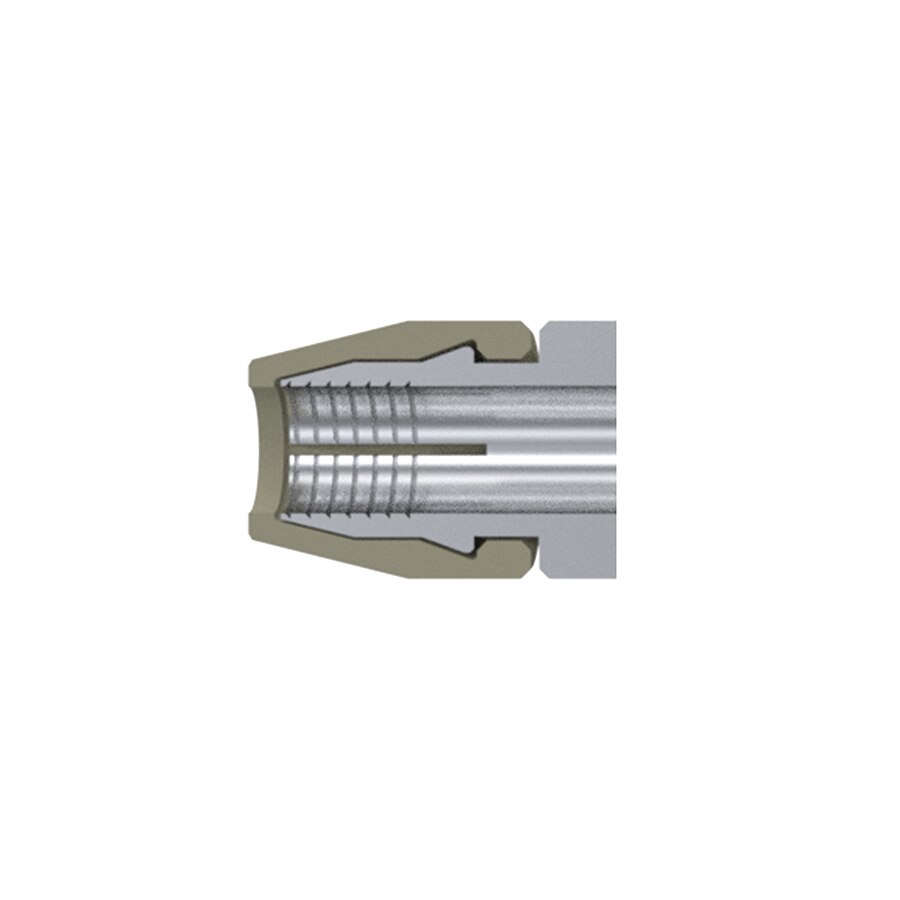

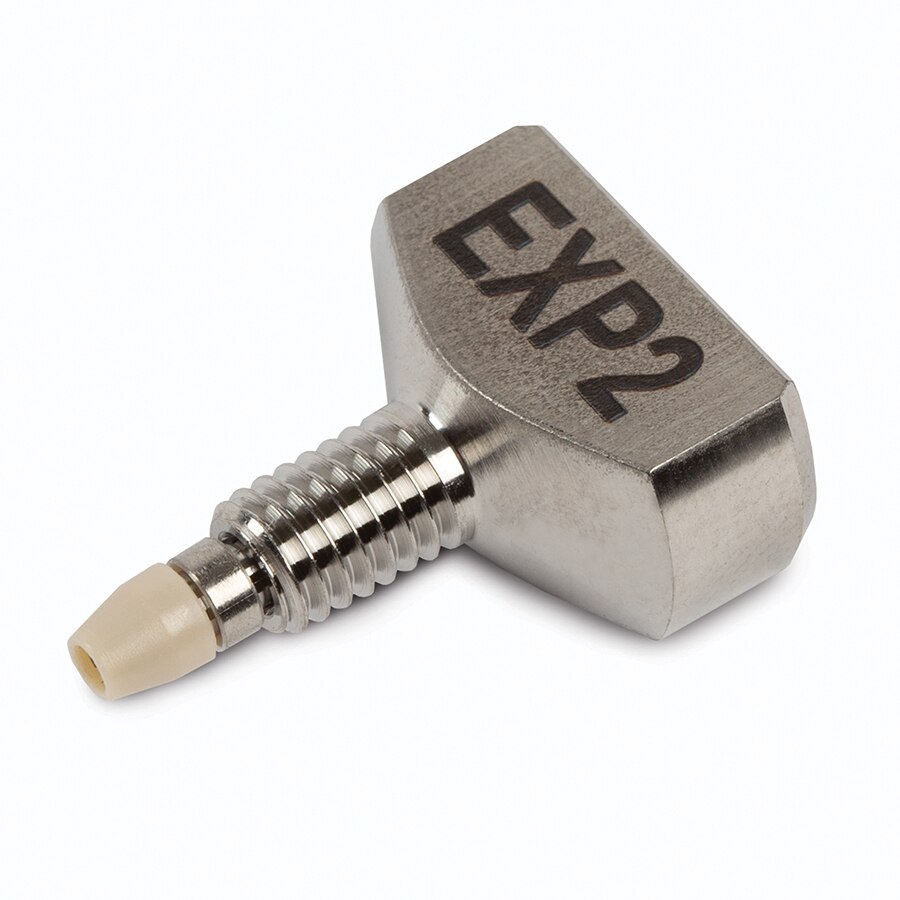

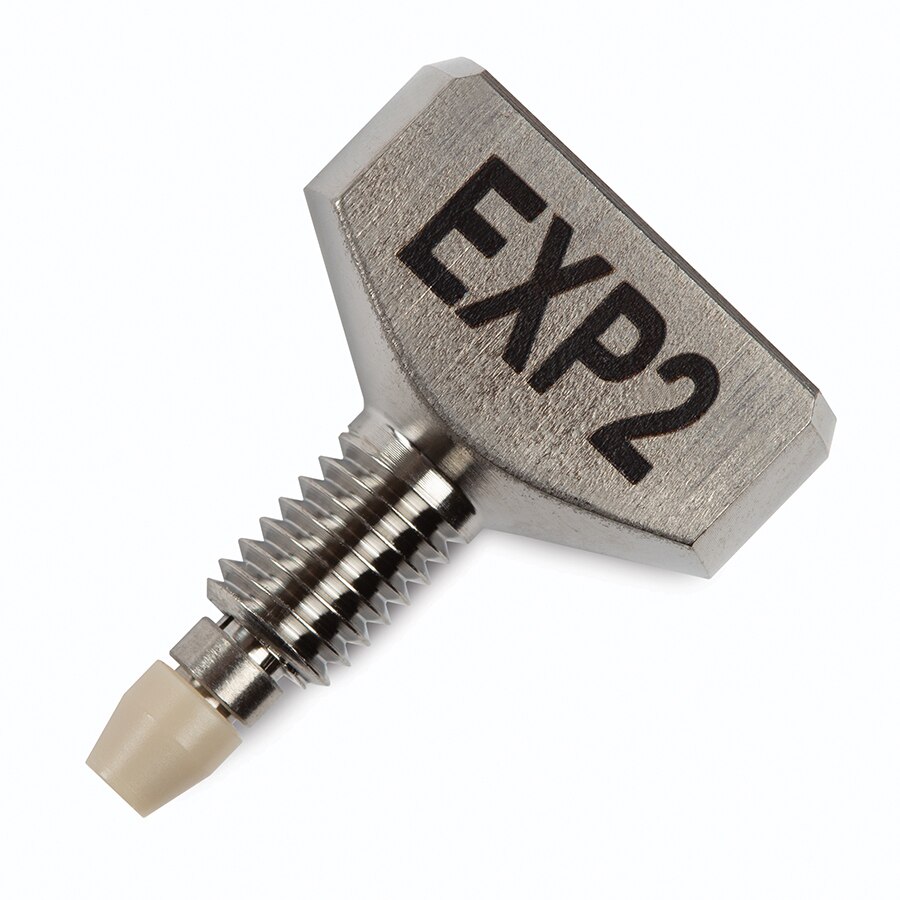

Restek is pleased to offer reusable EXP2 TI-LOK All-in-One (AIO) fittings from Optimize Technologies for the ultimate in easy, reliable LC connections. The innovative, one-piece design combines a threaded nut that is precision machined from titanium with a built-in PEEK ferrule, providing the superior corrosion resistance and robustness of titanium with the sealing capability of PEEK material. These integrated fittings can be hand tightened to 18,000 psi (1250 bar) and are ideal for both HPLC and UHPLC connections. EXP2 TI-LOK AIO fittings feature a convenient, built-in driver that makes secure installations quick and easy. The unique geometric design, in which the fittings firmly press the tubing against the tube stop of any instrument port, reliably creates a zero-dead-volume (ZDV) connection. The ferrule does not permanently swage to the tubing, allowing for many repeat connections and the ability to adjust the tubing to different port depths. Compatible with PEEK, PEEKsil, Hastelloy C, stainless-steel, and fused silica tubing.
Intellectual Property: optimizetech.com/patents
Features & Benefits
- Titanium nut with integrated PEEK ferrule simplifies installationone-piece design means no more lost ferrules.
- Convenient, built-in driver makes secure installations quick and easy.
- Allows easy 18,000 psi (1250 bar) seals without wrenches.
- Can be installed repeatedly without compromising high-pressure seal.
- Cutting-edge system provides zero-dead-volume (ZDV) connection to any 10-32 female port.
- Non-swaged ferrules mean vendor-specific tubing is not required.
- Suitable for both HPLC and UHPLC.
- Compatible with 1/16 PEEK, PEEKsil, Hastelloy C, stainless-steel, and fused silica tubing.
| Weight | 0.60 lbs |
|---|---|
| Dimensions | 4 × 3 × 2 in |
