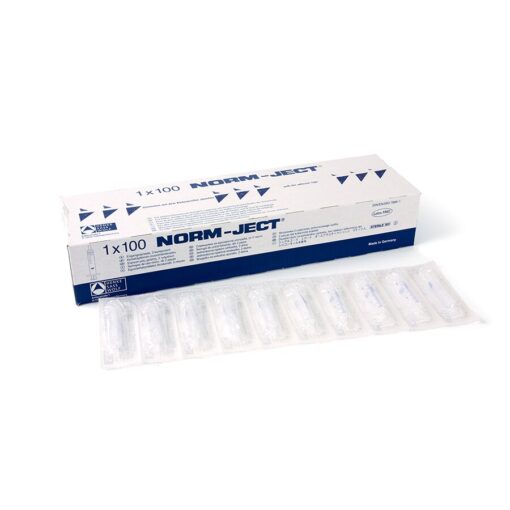

NORM-JECT and HENKE-JECT Plastic Syringe Specifications
Luer Slip
| Restek cat.# |
Volume (mL) |
Total Length (mm) |
Length of Cylinder (mm) |
Outside Diameter (mm) |
Inside Diameter (mm) |
Nozzle Configuration |
| 22766 | 1 | 94.8 | 84.7 | 6.40 | 4.69 | Tuberculin |
| 22767 | 3 | 74.9 | 65.1 | 10.80 | 9.65 | Centric |
| 22768 | 5 | 87.0 | 73.8 | 13.70 | 12.45 | Centric |
| 22769 | 10 | 98.5 | 85.3 | 17.30 | 15.90 | Eccentric |
| 22770 | 20 | 115.1 | 102.4 | 21.55 | 20.05 | Eccentric |
Luer Lock
| Restek cat.# |
Volume (mL) |
Total Length (mm) |
Length of Cylinder (mm) |
Outside Diameter (mm) |
Inside Diameter (mm) |
Nozzle Configuration |
| 22773 | 3 | 74.9 | 65.1 | 10.80 | 9.65 | Centric |
| 22774 | 5 | 87.0 | 73.8 | 13.70 | 12.45 | Centric |
| 22775 | 10 | 98.5 | 85.3 | 17.30 | 15.90 | Centric |
| 22776 | 20 | 115.1 | 102.4 | 21.55 | 20.05 | Centric |
Features & Benefits
NORM-JECT and HENKE-JECT syringes are latex free, contain no rubber, no silicone oil, styrene, or DEHP and are DNA free. These syringes are the choice for any situation needing an inert, nonreactive syringe. Because of their composition, they are ideal for chromatography and many other laboratory procedures. They are more chemically resistant than rubber-tipped syringes and are manufactured from only laboratory-grade polypropylene and polyethylene. These unique plastic syringes have a positive safety stop to prevent accidental spills. NORM-JECT and HENKE-JECT syringes are individually sterile-strip packed.
| Weight | 0.70 lbs |
|---|---|
| Dimensions | 2.40 × 4.40 × 15 in |
