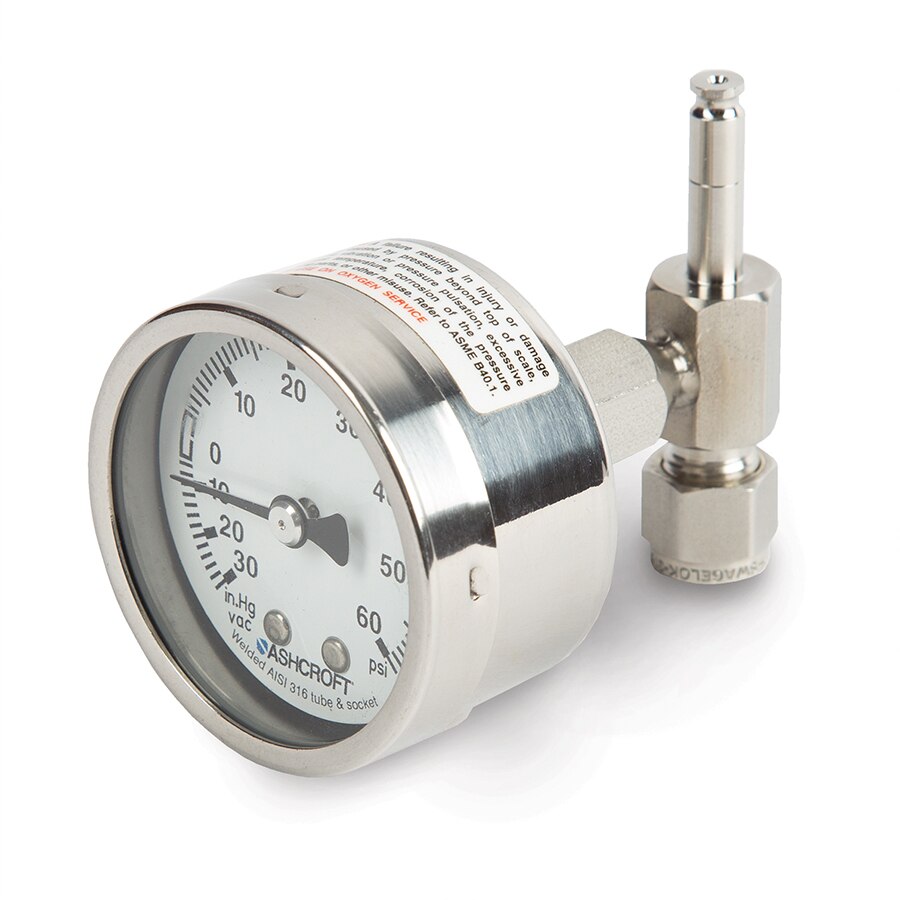

RAVEqc Quick-Connect Male 3 Port Valve to 1/4″ Male Compression Fitting with Gauge

• RAVEqc Quick-Connect air valves are a fast, easy, tool-free way to attach air canisters to the wide variety of devices used to sample and analyze air samples.
• Restek Air Valve Excellence (RAVE) is a great family of products that upgrade your existing air canisters to improve reliability and performance.
• Made in the U.S.A.

* Open-position option available to prevent vacuum/pressure from being trapped by the valve when desired (e.g., when using a vacuum/pressure gauge). High flow facilitates use with canister-cleaning ovens.

Features & Benefits

• Simplify your workflow—tool-free design makes it fast and easy for anyone to make consistent, quality connections.
• Extend air canister and valve lifetime—no wrenches mean no overtightening or cross-threading damage.
• Stand-alone or supporting roles—use alone or pair with a bellows/diaphragm valve for the ultimate in sample security and convenience.
• Check status at a glance—if the parts are connected, the valve is open; if they’re apart, it’s closed. (Open-position valves also available.*)
• Standard compression or tube end fittings accommodate a wide variety of air canisters and related devices.
• Leak-free performance—each and every valve is helium leak tested to 1×10^-6 mL/sec.
• Compatible with Entech Micro-QT valves.

Note: A RAVEqc valve bracket is required for use with Restek 1, 3, 6, and 15 L air sampling canisters when using the compression fitting mounted directly on the 1/4″ canister tube stub. This bracket is not needed when using Restek miniature canisters or Entech canisters.
