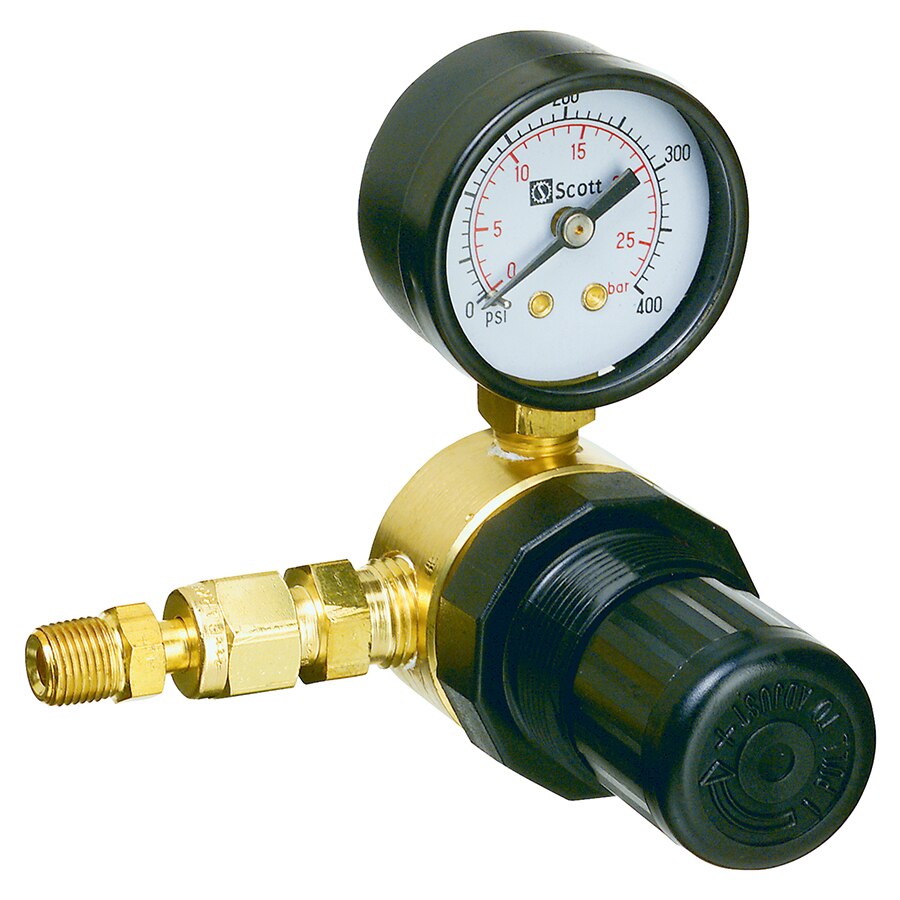

Regulator for Use with 14 L Airgas Standards, Inlet CGA 160; Outlet 1/4″ Female NPT

Specifications
Inlet Pressure Range: 0–300 psig
Maximum Inlet Pressure: 300 psig
Outlet Pressure Range: 2–25 psig
Maximum Delivery Pressure: 25 psig
Operating Temperature Range: 35 °F to 150 °F (2 °C to 65 °C)
Fittings:
– CGA-160 inlet connection (cat.# 22690)
– CGA-165 inlet connection (cat.# 22691)
Outlet Connection: 1/4" female NPT
Materials of Construction:
– Body: Brass
– Diaphragm: Viton
– Seat: Acetal
– Seal: Viton
For Use with:
– Use the CGA-160 inlet connection regulator (cat.# 22690) with 14 L Airgas transportable gases.
– Use the CGA-165 inlet connection regulator (cat.# 22691) with 48 L Airgas transportable gases.
