The Benchmark Multi-Position Stirring Hotplates provide simultaneous heating and stirring of multiple samples. The large top-plates feature a durable, chemically resistant, white-ceramic coating that provides exceptionally uniform temperature control up to 120°C. Both mixing speed and temperature are conveniently controlled on the digital display, which also features a safety LED that warns the user when the top plate is hot and unsafe to touch.

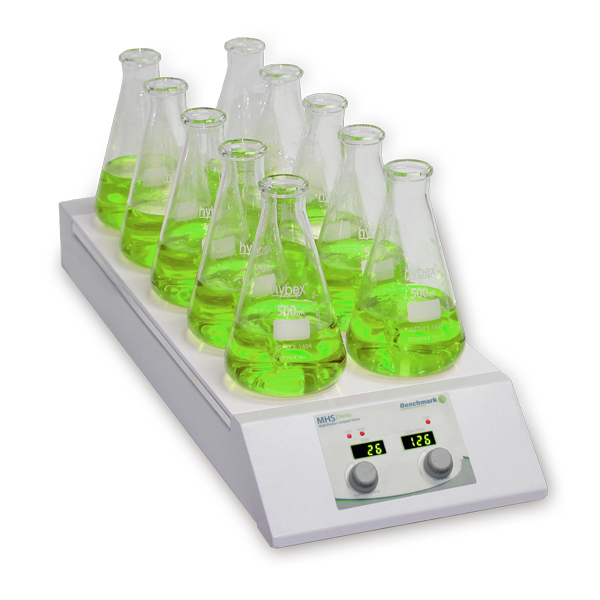

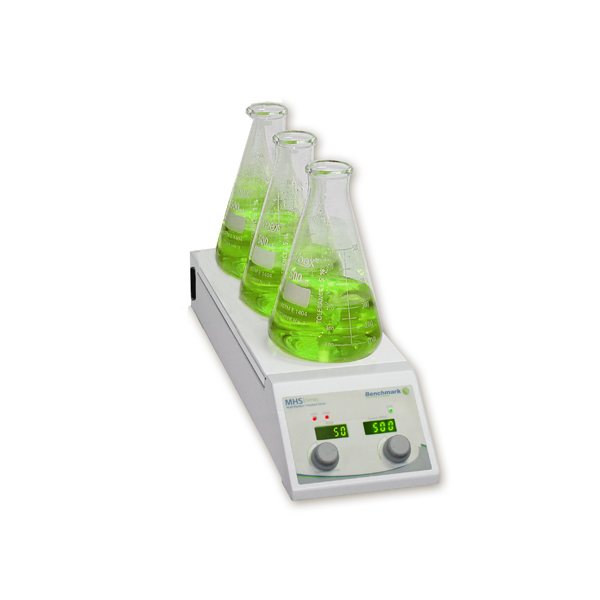

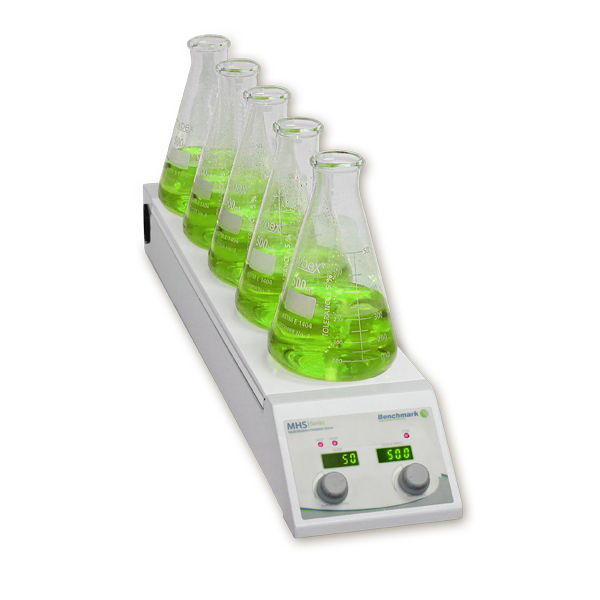

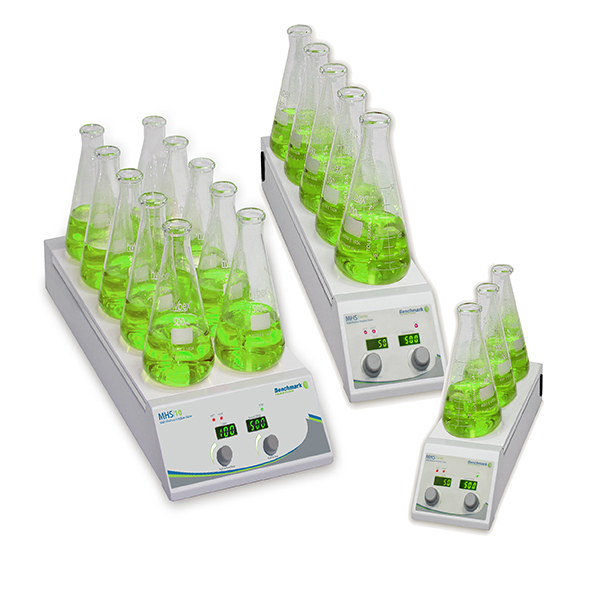

Three models are available, offering 3, 5 or 10 position capacity. Each stirring position is driven by an independent motor, providing efficient mixing of sample sizes up to 1000ml. With increased spacing (100mm) between stirring positions, the top surface is designed to accept a wide range of vessel types, including beakers, Erlenmeyer flasks and media storage bottles.
Key Features
- Simultaneous heating and stirring
- White ceramic top surface
- Effective stirring in bottles up to 1 liter
- Digital control of both speed and temperature
Specifications
| Model: | MHS-3 / MHS-5 / MHS-10 |
|---|---|
| Speed: | 150-2000 rpm |
| Speed Increments: | 1 rpm |
| Temperature Range: | 35-120°C |
| Temperature Increments: | 1°C |
| Mixing Capacity (H20): | 1 Liter for each position |
| Platform Dimensions: | 100 x 100mm for each position |
| Exterior Dimensions (MHS-3): | 17.6 x 5.3 x 3.3 in. / 44.7 x 13.5 x 8.4 cm |
| Exterior Dimensions (MHS-5): | 25.4 x 5.3 x 3.3 in. / 64.5 x 13.5 x 8.4 cm |
| Exterior Dimensions (MHS-10): | 25.4 x 9.6 x 3.3 in. / 64.5 x 24.5 x 8.4 cm |
| Weight (MHS-3): | 8.4 lbs / 3.8 kg |
| Weight (MHS-5): | 10.1 lbs / 4.6 kg |
| Weight (MHS-10): | 17 lbs / 7.7 kg |
| Electrical: | 120 or 230V, 50-60Hz |
| Power Consumption: | MHS-3: 20W, MHS-5: 30W, MHS-10: 80W |
| Warranty: | 2 years |
| Model | IPS7000-3 — MHS-3 Three position Hotplate Stirrer, IPS7000-5 — MHS-5 Five position Hotplate Stirrer, IPS7000-10 — MHS-10 Ten position Hotplate Stirrer |
|---|
