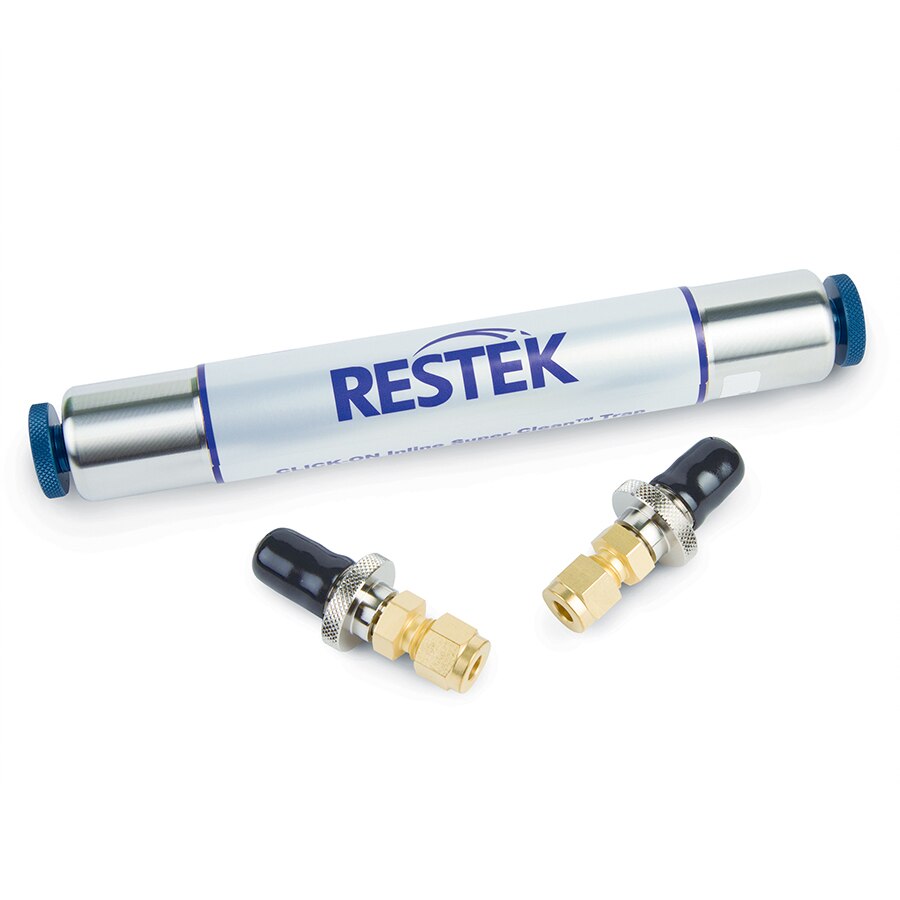

Specifications for Click-On Inline Super-Clean Purification Gas Traps
Click-On Traps measure: 8 1/2″ x 1 1/4″ (21.6 x 3.2 cm)
| —–Capacity—— | ||||||||
| Type of Filter | Gas Quality at Outlet |
Maximum Pressure | Maximum Flow (L/min.) |
Use for: | H20 (g) | O2 (mL) | Hydrocarbons (g) (as n-butane) |
Estimated Lifetime (years) |
| Moisture cat.# 22467 |
>99.9999 | 11 bar 160 psi |
25 | Inert carrier gas Helium Air Hydrogen |
15 | NA | NA | >3 |
| Oxygen cat.# 22468 |
>99.9999 | 11 bar 160 psi |
25 | Inert carrier gas Hydrogen |
NA | 2000 | NA | >3 |
| Hydrocarbon cat.# 22466 |
>99.9999 | 11 bar 160 psi |
25 | Inert carrier gas Helium Air Hydrogen |
NA | NA | 24 | >3 |
| Fuel Gas1 cat.# 22465 |
>99.9999 | 11 bar 160 psi |
25 | Inert carrier gas Helium Air Hydrogen |
7 | NA | 12 | >2 |
| Triple2 cat.# 22464 |
>99.9999 | 11 bar 160 psi |
25 | Inert carrier gas Hydrogen |
4 | 1000 | 8 | >2 |
| Helium-Specific Triple2 cat.# 22473 |
>99.9999 | 11 bar 160 psi |
25 | Helium | 4 | 1000 | 8 | >2 |
1 Removes hydrocarbons, moisture.
2 Removes hydrocarbons, moisture, oxygen.
Note:
Super-Clean Gas Filters are recommended for purifying noncorrosive gases with low concentrations of contaminants. The maximum concentration of oxygen in the incoming gas stream for oxygen purifiers is 0.5%.
Did you know?
Trap replacement depends on the quality of the incoming gas. Use the double connector and install an indicating cartridge after a trap to indicate when the trap should be replaced.
To prevent settling of desiccant, mount vertically, not horizontally.
Features & Benefits
- High-purity output ensures 99.9999% pure gas.
- Click-On fittings for easy, leak-tight cartridge changes; brass or stainless steel, 1/4″ or 1/8″.
- Triple gas trap is ideal for purifying carrier gas—it contains oxygen, moisture, and hydrocarbon scrubbers in one cartridge.
- Fuel gas trap is ideal for purifying flame ionization detector (FID) fuel gases, removing both moisture and hydrocarbons.
- Helium-specific triple gas trap is ideal for GC-MS—it contains oxygen, moisture, and hydrocarbon scrubbers in one cartridge.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6 × 4 × 3 in |
