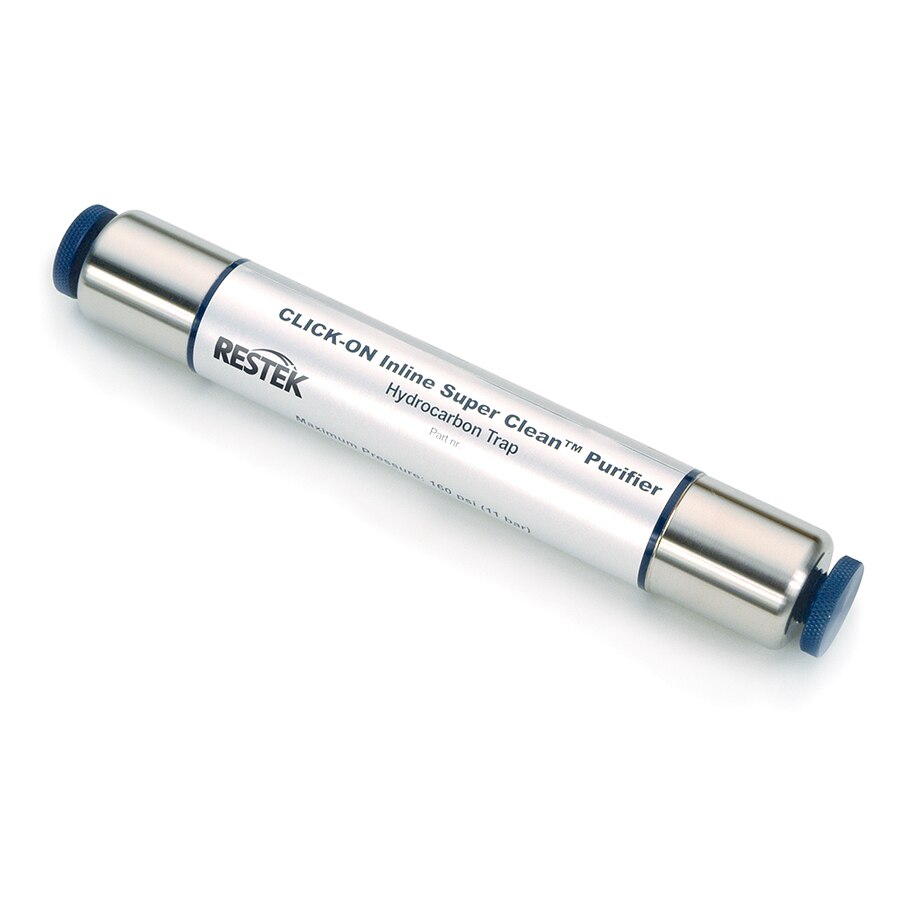

Click-On In-line Super Clean Ultra-High Capacity Hydrocarbon Filter

Name: Click-On In-line Super Clean Ultra-High Capacity Hydrocarbon Filter
Brand: Restek
SKU: 9993-10-1198
Availability: InStock

$201.00

SKU: 9993-10-1198 Categories: Gas Purification & Generators, Click-On In-line Brand: Restek

Specifications for Click-On Inline Super-Clean Purification Gas Traps

Click-On Traps measure: 8 1/2" x 1 1/4" (21.6 x 3.2 cm)

						—–Capacity——
Type of Filter	Gas Quality at Outlet	Maximum Pressure	Maximum Flow (L/min.)	Use for:	H₂0 (g)	O₂ (mL)	Hydrocarbons (g) (as n-butane)	Estimated Lifetime (years)
Moisture cat.# 22467	>99.9999	11 bar 160 psi	25	Inert carrier gas Helium Air Hydrogen	15	NA	NA	>3
Oxygen cat.# 22468	>99.9999	11 bar 160 psi	25	Inert carrier gas Hydrogen	NA	2000	NA	>3
Hydrocarbon cat.# 22466	>99.9999	11 bar 160 psi	25	Inert carrier gas Helium Air Hydrogen	NA	NA	24	>3
Fuel Gas¹ cat.# 22465	>99.9999	11 bar 160 psi	25	Inert carrier gas Helium Air Hydrogen	7	NA	12	>2
Triple² cat.# 22464	>99.9999	11 bar 160 psi	25	Inert carrier gas Hydrogen	4	1000	8	>2
Helium-Specific Triple² cat.# 22473	>99.9999	11 bar 160 psi	25	Helium	4	1000	8	>2

¹ Removes hydrocarbons, moisture.
² Removes hydrocarbons, moisture, oxygen.

Note:
Super-Clean Gas Filters are recommended for purifying noncorrosive gases with low concentrations of contaminants. The maximum concentration of oxygen in the incoming gas stream for oxygen purifiers is 0.5%.

Did you know?
Trap replacement depends on the quality of the incoming gas. Use the double connector and install an indicating cartridge after a trap to indicate when the trap should be replaced.

To prevent settling of desiccant, mount vertically, not horizontally.
