Conforms to the specifications established in the current ASTM method D3606 for the quantitation of benzene and toluene in spark ignition fuel.

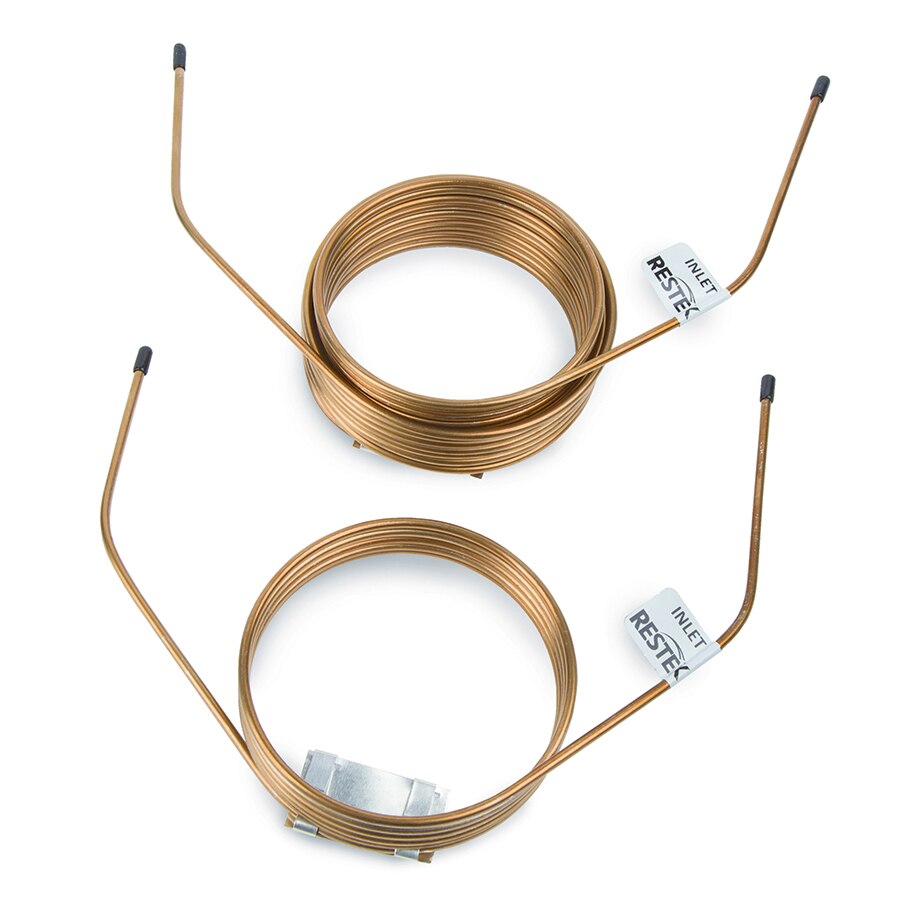

The inlet is identified on both column 1 and column 2. Note: The inlet of column 2 is identified for proper orientation for connection to the valve.
Column Configuration Key:
-800 GeneralGeneral Configuration
-810 Agilent(HP) 5880, 5890, 5987, 6890, 7890
-811 Agilent 6850
-821 Bruker 430, 450, Varian 3800
-840 PE Auto SysPE Auto System 8300/8400/8700, Clarus 500
-850 Shimadzu 14AShimadzu 14A, 2014
Other column configurations available.
Features & Benefits
- Accurate quantification of toluene and benzene in ethanol blended spark ignition fuels according to ASTM D3606.
- Column sets are individually tested for D3606 method applicability.
- QC test chromatogram includes approximate backflush times.
- Exclusively available from Restek. Includes Column 1: backflush column, 6′ (1.8 m), 1/8″ OD, 2.0 mm ID; Column 2: proprietary packing, 16′ (4.9 m), 1/8″ OD, 2.0 mm ID.
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 13 × 2 in |
