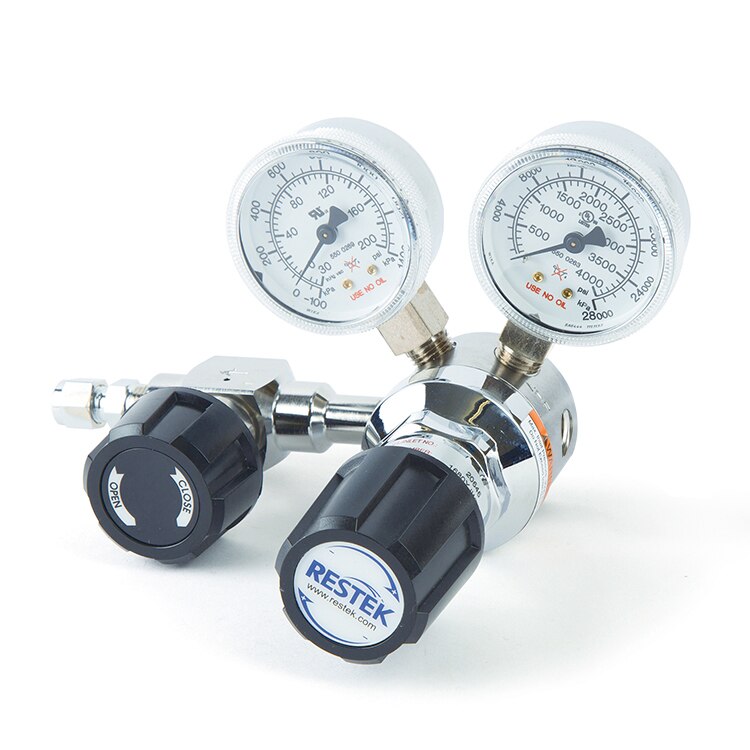

UHP brass regulators are suitable for use with high-purity carrier gas for sensitive GC applications using MS, PID, or ECD detection methods. They feature reduced internal dead volume relative to stainless-steel bodies. The 316L stainless-steel diaphragm valve ensures leak-free shutoff. Oxidation-resistant chrome plating maintains a like-new appearance.
All regulators are rated to 3000 psig (20,684 kPa) maximum inlet pressure.
Inlet gauge: 0 to 4000 psig (0–27,579 kPa)
Outlet assembly: 316L stainless-steel diaphragm valve, 1/4″ tube fitting
Features & Benefits
- Oxidation resistant, chrome plated.
- Most stable outlet pressure control.
- Secondary pressure regulation not needed.
- Most widely used regulator.

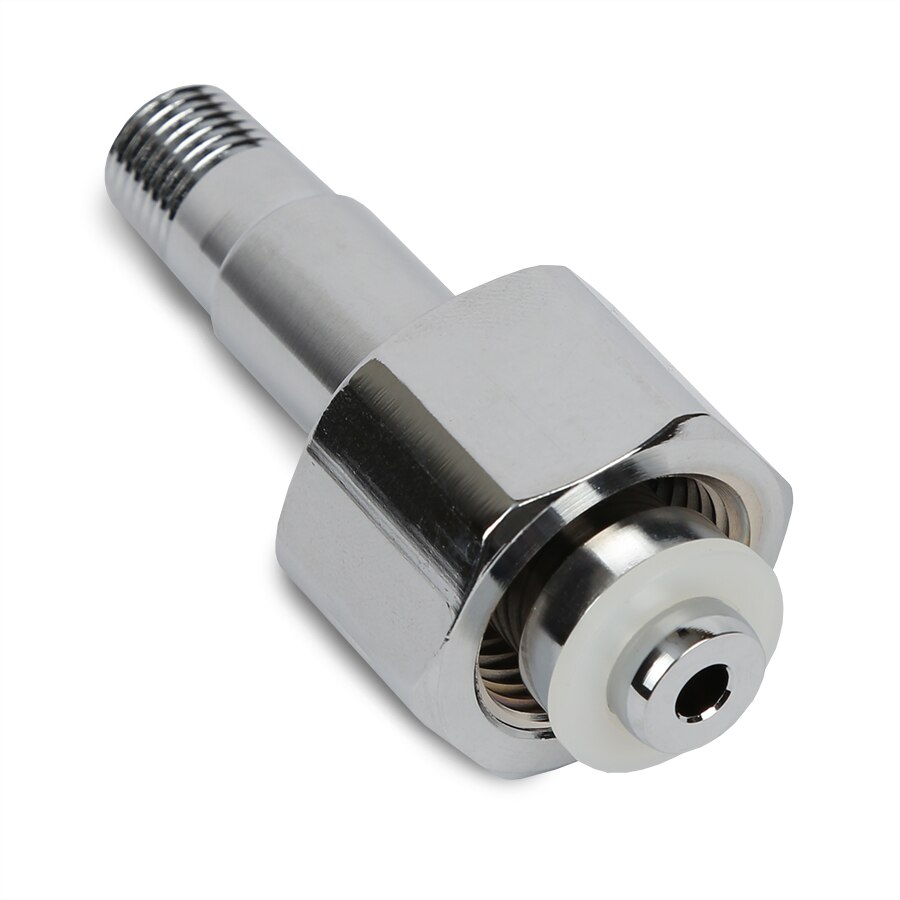

- Also available with CGA fittings.
| Weight | 6.50 lbs |
|---|---|
| Dimensions | 5 × 4 × 2 in |
| Material | Chrome-Plated Brass |
