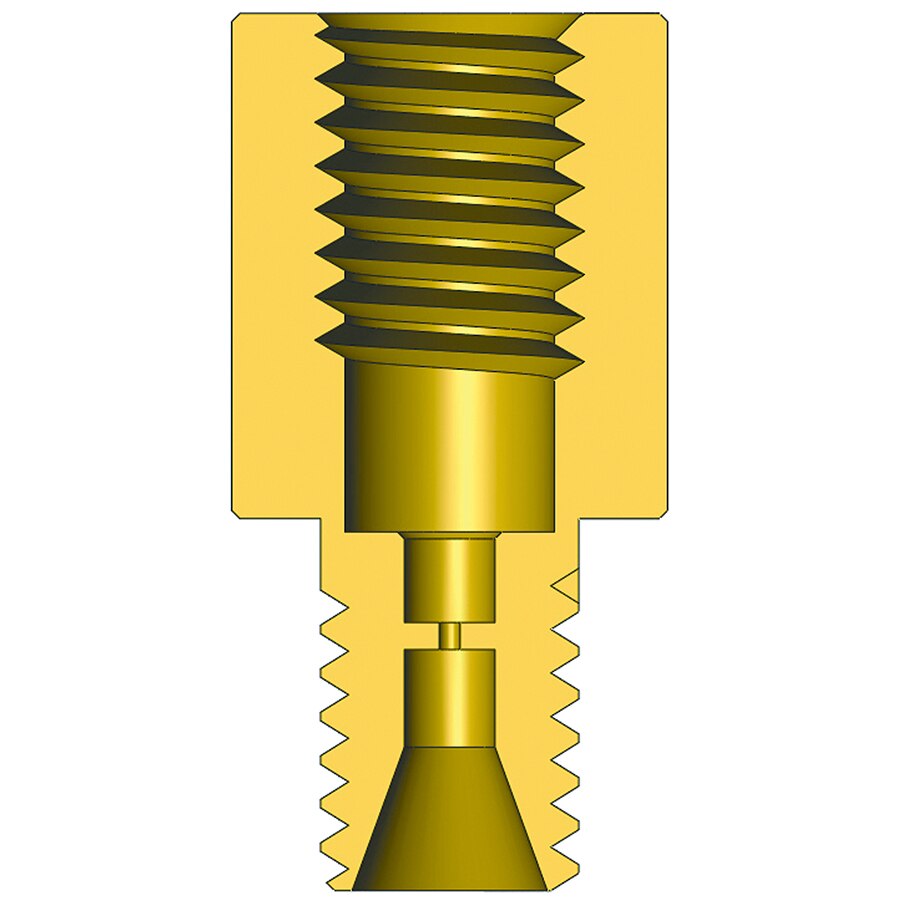

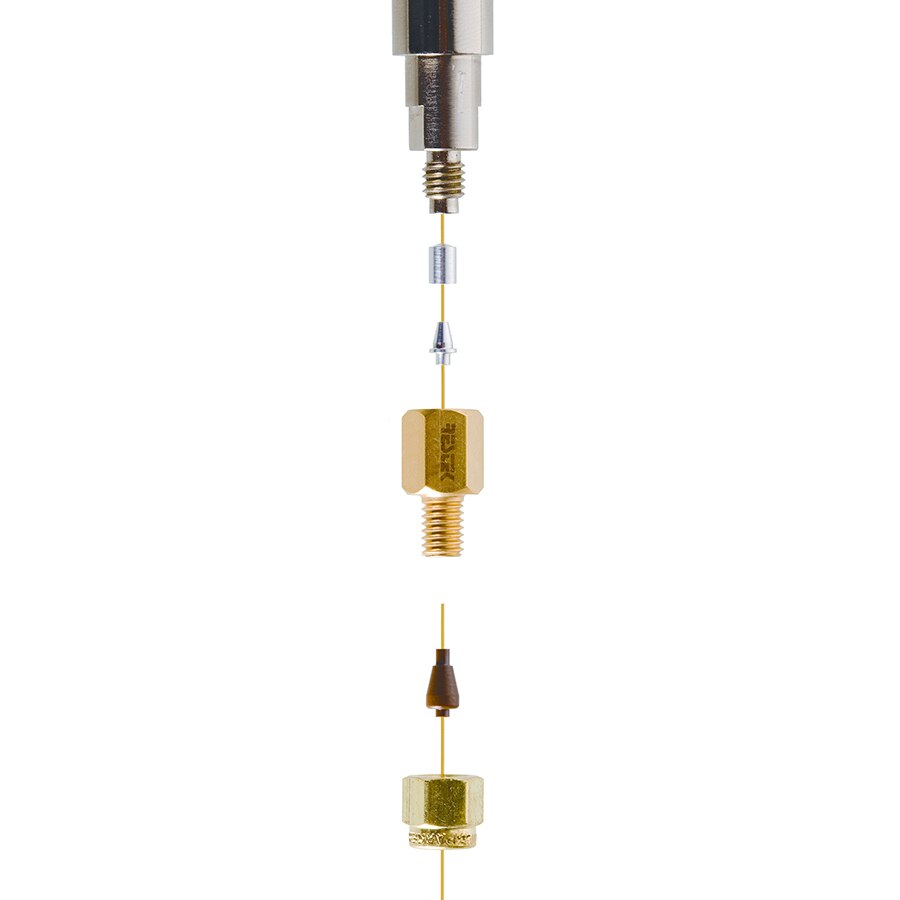

Restek has designed the EZ No-Vent GC column-mass spectrometer connector to be simple and easy to use. A critical orifice in the EZ No-Vent connector minimizes the amount of oxygen allowed into the MS source, eliminating the need for purge gas as is required for other manufacturer’s vent systems. The lengthy vent and pump-down cycle is not required, and normal instrument down-time from a column change is dramatically reduced. The EZ No-Vent connector easily attaches to the MS source without special tools or extra plumbing.
Features & Benefits
- Change GC-MS columns in minutes without venting—100 µm transfer line maintains vacuum and eliminates the need to vent.
- Easy to install and maintain—no special tools or plumbing required.
- Gold-plated body for inertness.
- High-temperature aluminum ferrules eliminate leaks at the transfer line fitting.
- Lower cost than other “no-vent” fittings.
- Can be used on Shimadzu QP2010, QP2010 Plus, and QP2020 mass spectrometers.
| Weight | 0.45 lbs |
|---|---|
| Dimensions | 6.50 × 6.50 × 4 in |
