Moisture capacity: 6 g of water
Maximum flow: 1 L/min
Specifications for In-Line Filters
| -Capacity- | -Capacity- | -Capacity- | -Capacity- | ||||||
| Type of Filter | Maximum Pressure | Maximum Flow Rates | Use for: | Indicator Color Change |
H20 (g) | O2 (mL) | Hydrocarbons (g) (as n-butane) |
Carbon Dioxide (g) | Estimated Lifetime (years) |
| Oxygen cat.# 22010, 22011, 23804, 23805 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar | Green to Grey | — | 45 | NA | NA | >1 |
| Moisture cat.# 22014, 22015, 23806, 23807 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar, Air | Yellowish Green to Blue | 6.0 | — | — | — | >1 |
| Carrier Gas cat.# 23808, 23809, 23810, 23811 |
11 bar/160 psi | 400 mL/min | Inert carrier gas, He, N2, H2, Ar | 2 indicators: Blue to Brown (moisture); Green to Gray (oxygen) |
1.4 | 80 | 1 | — | >1 |
| Detector Gas cat.# 23812, 23813, 23814, 23815 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar, Air | Yellowish Green to Blue | 3.0 | — | 2 | — | >1 |
| CO2 cat.# 23816, 23817, 23818, 23819 |
68.9 bar/1000 psi | 1300 cc/min | He, N2, H2, Ar, Air | NA | — | — | — | 19 | >1 |
Features & Benefits

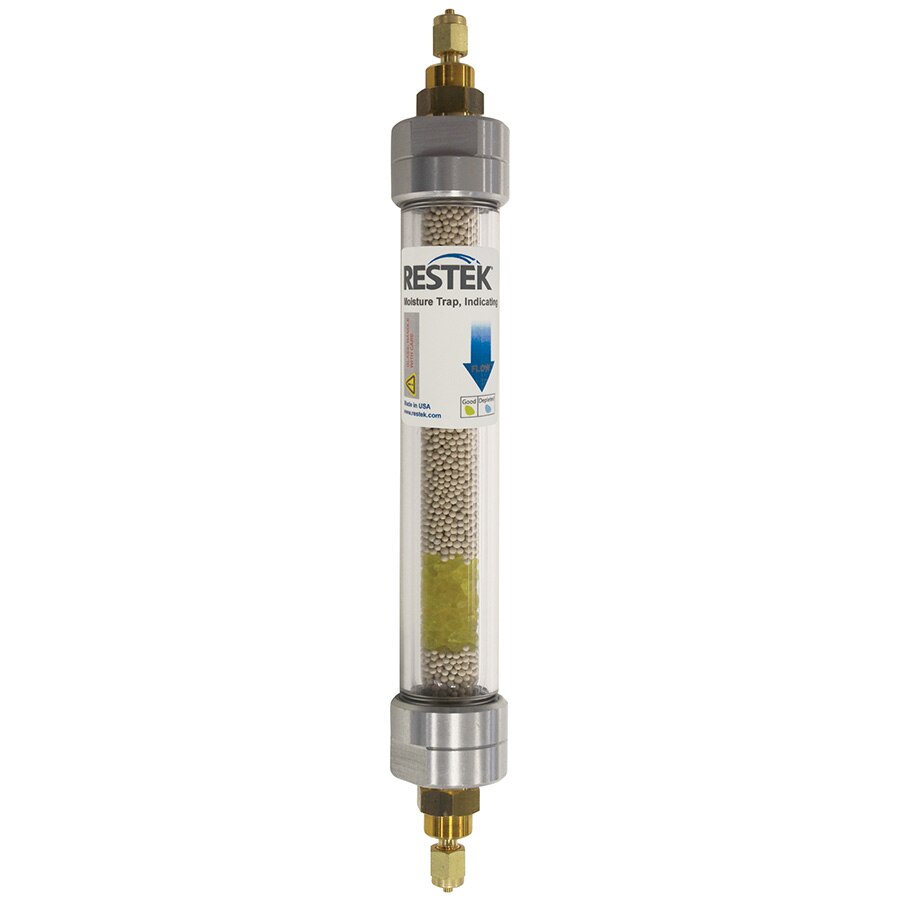

- Reduces water to less than 10 ppb. Indicator changes from yellowish green to blue at 5% relative humidity (suitable for general use).
- Pre-purged for fast stabilization.
- Reduces noise from high-sensitivity detectors.
- Heavy-walled glass body prevents oxygen and water infusion.
- 10 ?m frit prevents microparticulate damage to needle valves and flow controllers.
- Maximum operating pressure: 160 psi (1103 kPa).
| Weight | 1 lbs |
|---|---|
| Dimensions | 12 × 3 × 2.25 in |
| Dimensions |
