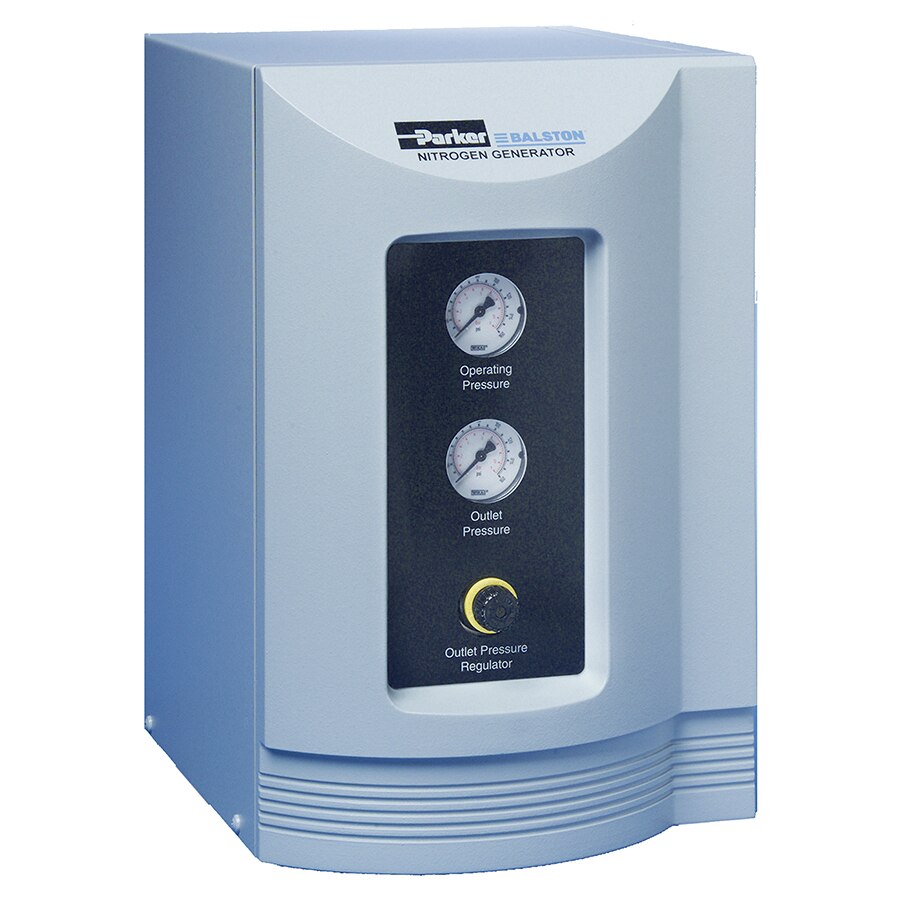

Specifications for Parker Balston Nitrogen Gas Generators for LC/MS
| N2-04 | N2-14 | N2-22 | N2-35 | |
| Maximum Nitrogen Flow Rate*: | 24 L/min | 60 L/min | 88 L/min | 131 L/min |
| Nitrogen Purity: | 95.0%-99.0% | 95.0%–99.5% | 95.0%–99.5% | 95.0%–99.5% |
| Min/Max Inlet Pressure: | 60 psig/145 psig | 60 psig/145 psig | 60 psig/145 psig | 60 psig/145 psig |
| Electrical Requirements: | None | None | None | None |
| Dimensions: | 16.1" h x 10.7" w x 13.4" d (40.9 cm x 27.2 cm x 34 cm) |
51.5" h x 18" w x 16.2" d (130.8 cm x 45.7 cm x 41.1 cm) |
51.5" h x 18" w x 16.2" d (130.8 cm x 45.7 cm x 41.1 cm) |
51.5" h x 18" w x 16.2" d (130.8 cm x 45.7 cm x 41.1 cm) |
| Shipping Weight: | 42.5 lb (19 kg) | 75 lb (34 kg) | 80 lb (36 kg) | 90 lb (41 kg) |
*The maximum flow rates listed assumes 145 psig at 95.0% nitrogen purity.
Features & Benefits
- Turn compressed air into ultra-pure nitrogen (up to 99.0%).
- Flows up to 24 L/min.
- Models N2-04, N2-14, N2-22, and N2-35 require no electricity.
- Safe, reliable, low maintenance.
- Maintenance kits include replacement filters.
- 12-month warranty from date of purchase.
| Weight | 43 lbs |
|---|---|
| Dimensions | 13.40 × 16.10 × 10.70 in |
