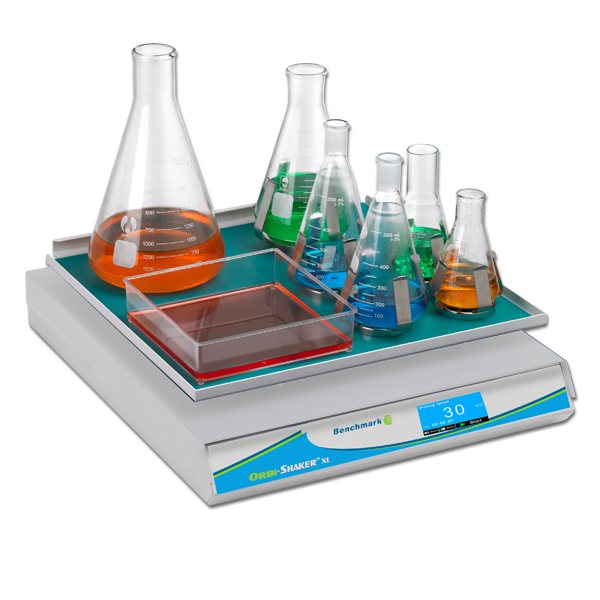

The Orbi-Shaker XL offers flask capacity that far exceeds that of most benchtop models. With a large 18 x 18 inch platform and a powerful, beltless motor drive, the Orbi-Shaker XL is capable of mixing up to five 2L flasks or nine 1L flasks simultaneously. The included, non-slip rubber mat platform is ideal for low speed applications, while the convenient MAGic Clamp™ platform is also available for high speed mixing of Erlenmeyer flasks, tube racks or microplates. The MAGic Clamp™ allows for instant flask clamp exchange without the use of tools, screws or any other hardware.
Key Features
- Large 18 x 18″, up to 5 x 2L
- Convenient, Benchtop design
- Horizontally circular 19mm orbit for aeration & mixing
- Instantly change flask clamps with MAGic Clamp™ accessories (PATENTED)
Specifications
| Speed Range | Variable 30 to 300 rpm |
|---|---|
| Speed Increment | 1 rpm |
| Orbit | 19mm |
| Timer | 1 min to 99 hr or countinous |
| Platform Size | 18 x 18 in. / 45 x 45 cm |
| Load Capacity | 5 x 2L or 9 x 1L / 65 lbs (30kg) |
| Ambient Operating Temperature | +4°C to +65°C |
| Dimensions (WxDxH) | 18.5 x 21.25 x 5 |
| Dimensions (cm) | 47 x 54 x 12.5 |
| Weight | 65 lbs (30kg) |
| Electrical | 120 or 230V 50-60Hz |
| Power | 50W |
| Warranty | 2 years |
Optional Accessories
- H1010-MR — MAGic Clamp Universal Platform 18 x 18″ (for flasks/tubes) (5048-10-0304) — $456.35
- H1000-MR-CMB — MAGic Clamp COMBO, for 125ml, 250ml, 500ml flasks (5048-10-0300) — $58.64
- H1000-MR-3000 — MAGic Clamp magnetic clamp, 2.8/3L Erlenmeyer (5048-10-0086) — $154.4
- H1000-MR-2000 — MAGic Clamp magnetic clamp, 2000ml Erlenmeyer (max. 5) (5048-10-0043) — $98.52
- H1000-MR-1000 — MAGic Clamp magnetic clamp, 1000ml Erlenmeyer (5048-10-0044) — $76.25
- H1000-MR-500 — MAGic Clamp magnetic clamp, 500ml Erlenmeyer (5048-10-0033) — $49.88
- H1000-MR-250 — MAGic Clamp magnetic clamp, 250ml Erlenmeyer (5048-10-0034) — $49.88
- H1000-MR-125 — MAGic Clamp magnetic clamp, 125ml Erlenmeyer (max. 36) (5048-10-0047) — $44.43
- H1000-MR-50 — MAGic Clamp magnetic clamp, 50ml Erlenmeyer (5048-10-0035) — $41.59
- H1000-MR-1550 — MAGic Clamp Tube Rack, 30 x 15ml, 20 x 50ml tubes (5048-10-0037) — $199.77
- H1000-MR-T15 — MAGic Clamp Tube Rack, 32x15ml, tubes (max. 8) (5048-10-0038) — $199.77
- H1000-MR-T50 — MAGic Clamp Tube Rack, 15 x 50ml (5048-10-0039) — $199.77
- H1000-MR-T600 — MAGic Clamp Tube Rack, 4x500ml or 600ml conical bottles (5048-10-0054) — $231.7
- H1000-MR-MP — MAGic Clamp magnetic clamp, one microplate (5048-10-0036) — $107.16
- H1010-P-MP — Platform, holds 6 standard micro plates (5048-10-0305) — $997.47
- H1010-P-SP — Universal Spring Platform (5048-10-0306) — $769.86
- H1000-MR-TSR — MAGic Clamp tilted holder for 15mL and 50mL tube racks (5048-10-0040) — $151.24
- H1000-MR-T15H — MAGic Clamp Tube Rack, 12 x 1.5/2.0ml tubes, horizontal (5048-10-0055) — $138.63
- H1000-MR-T150H — MAGic Clamp Tube Rack, 4 x 15ml tubes, horizontal (5048-10-0056) — $138.63
- H1000-MR-T500H — MAGic Clamp Tube Rack, 2 x 50ml tubes, horizontal (5048-10-0057) — $138.63
| Weight | 12 lbs |
|---|---|
| Dimensions | 14 × 12 × 8 in |
