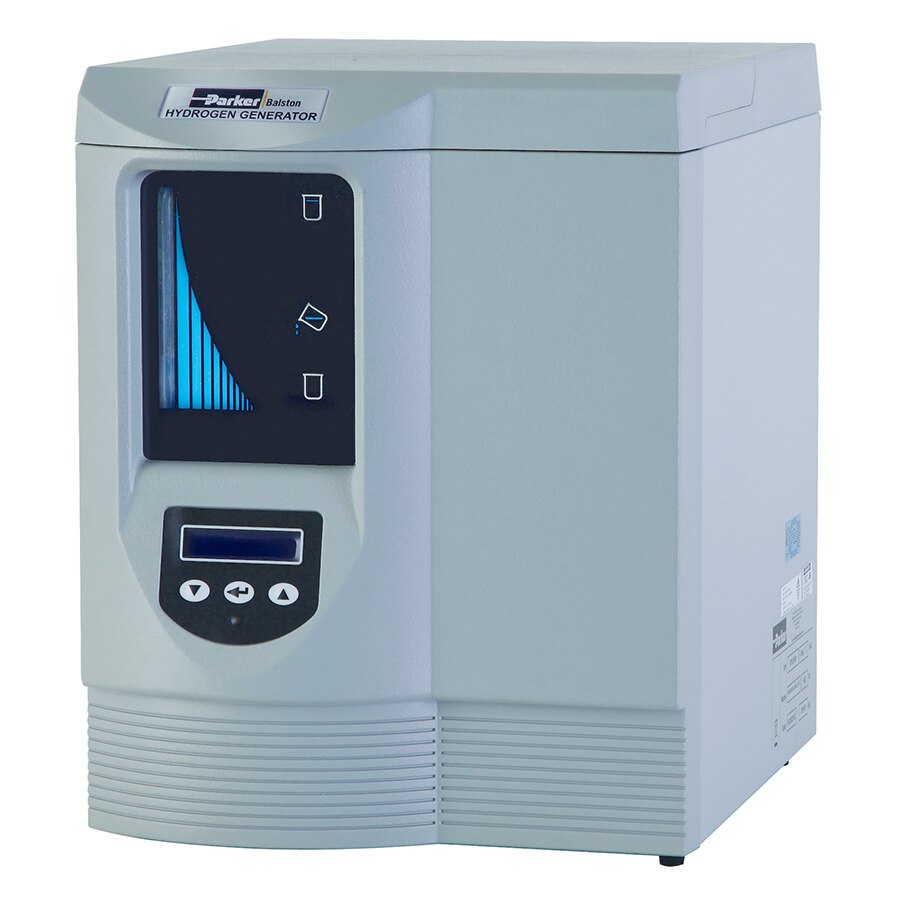

Specifications for Parker H2PEMPD Hydrogen Generators
| Purity: | 99.99999+% pure hydrogen |
| Outlet Port: | 1/4″ compression |
| Electrical Requirements: | 100 to 230 VAC, 50/60Hz |
| Physical Dimensions: | 17.1″ h x 13.5″ w x 21″ d |
| Shipping Weight: | 60 lb |
Features & Benefits
- Proton exchange membrane (PEM) cell eliminates the need for liquid electrolytes.
- Maintenance-free palladium purifier removes oxygen to less than 0.01 ppm and moisture to 1 ppm.
- Produces continuous supply of 99.99999+% pure hydrogen gas.
- Does not require downstream gas filters.
- Maximum outlet pressures of 100 psig (690 kPa).
- Automatic safety feature shuts the generator down if a hydrogen leak is detected.
- Compact unit requires only one square foot of bench space.
- Warranty: one year from date of purchase on system and three years from date of purchase on cell life.
| Weight | 60 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
