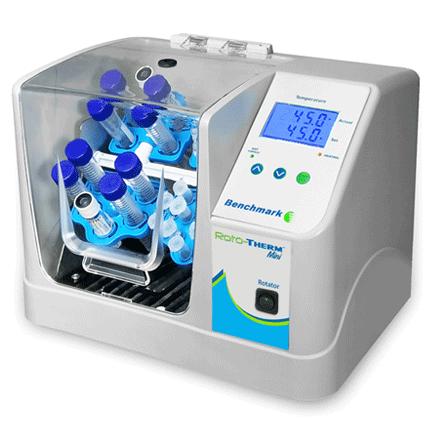

Roto-Therm Incubated Rotator Series

Benchmark’s new Roto-Therm series of incubated rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization etc, the mixers include

interchangeable tube holders for accomomodating all common tube sizes from 0.5ml to 50ml. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.

For applications requiring temperature control, the Roto-Therm series can be digitally programmed to maintain chamber temperatures of ambient +5°C to 60°C and include an “in-lab” calibration function for ensuring accurate temperature control.

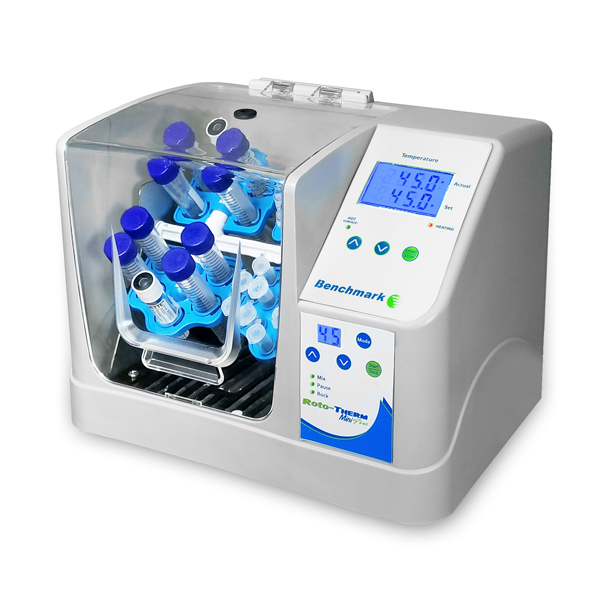

The Roto-Therm is also available in a “Plus” configuration, providing the following additional features:

Variable speed: 5 to 70rpm “Mix” function: Rotating in combination w/ oscillations (increased mixing) “Pause” function: Rotating with intermittent “stops” during rotation “Rock” function: Back and forth, gentle rocking motion (see-saw)

The Plus model also offer an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2ml tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode.

Key Features

• Rotated mixing with temperature control
• Includes tube holders for common tube sizes
• Available with variable speed control and advanced shaking/ mixing modes: Mix (Oscillating), Pause, Rock

Specifications

Optional Accessories

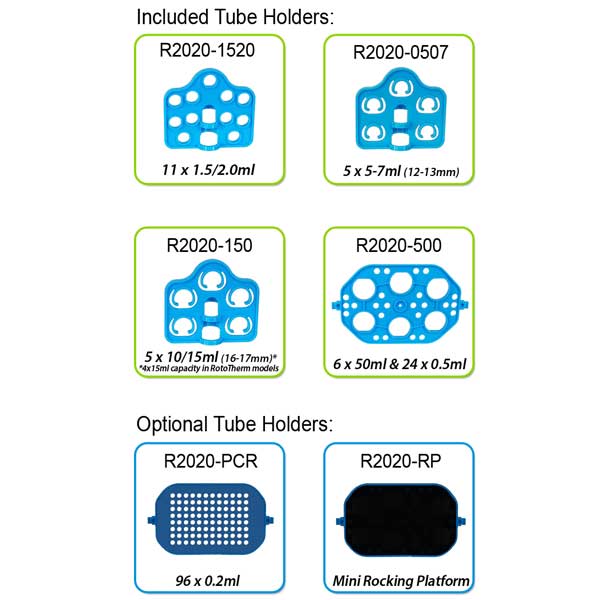

• R2020-1520 — Tube holder, 11 x 1.5/2.0ml, 2/pk (1 pack included) (5048-10-0486) — $79.87
• R2020-0507 — Tube holder, 5 x 5-7ml, 2/pk (1 pack included) (5048-10-0484) — $79.87
• R2020-150 — Tube holder, 5 x 10-15ml, 2/pk (1 pack included) (5048-10-0485) — $79.87
• R2020-500 — Tube holder, 6 x 50ml (and 24 x 0.5ml), 1 each (included) (5048-10-0487) — $64.79
• R2020-PCR — Tube holder, 96 x 0.2ml, 12 x PCR strips or one PCR plate (R2024 only) (5048-10-0488) — $91.59
• R2020-RP — Mini rocking platform with rubber mat, 4.5 x 3 in (R2024 only) (5048-10-0489) — $119.01
