Specifications for In-Line Filters
| Capacity | Capacity | Capacity | Capacity | ||||||
| Type of Filter | Maximum Pressure | Maximum Flow Rates | Use for: | Indicator Color Change |
H20 (g) | O2 (mL) | Hydrocarbons (g) (as n-butane) |
Carbon Dioxide (g) | Estimated Lifetime (years) |
| Oxygen cat.# 22010, 22011, 23804, 23805 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar | Green to Grey | | 45 | NA | NA | >1 |
| Moisture cat.# 22014, 22015, 23806, 23807 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar, Air | Yellowish Green to Blue | 6.0 | | | | >1 |
| Carrier Gas cat.# 23808, 23809, 23810, 23811 |
11 bar/160 psi | 400 mL/min | Inert carrier gas, He, N2, H2, Ar | 2 indicators: Blue to Brown (moisture); Green to Gray (oxygen) |
1.4 | 80 | 1 | | >1 |
| Detector Gas cat.# 23812, 23813, 23814, 23815 |
11 bar/160 psi | 2 SLPM | Inert carrier gas, He, N2, H2, Ar, Air | Yellowish Green to Blue | 3.0 | | 2 | | >1 |

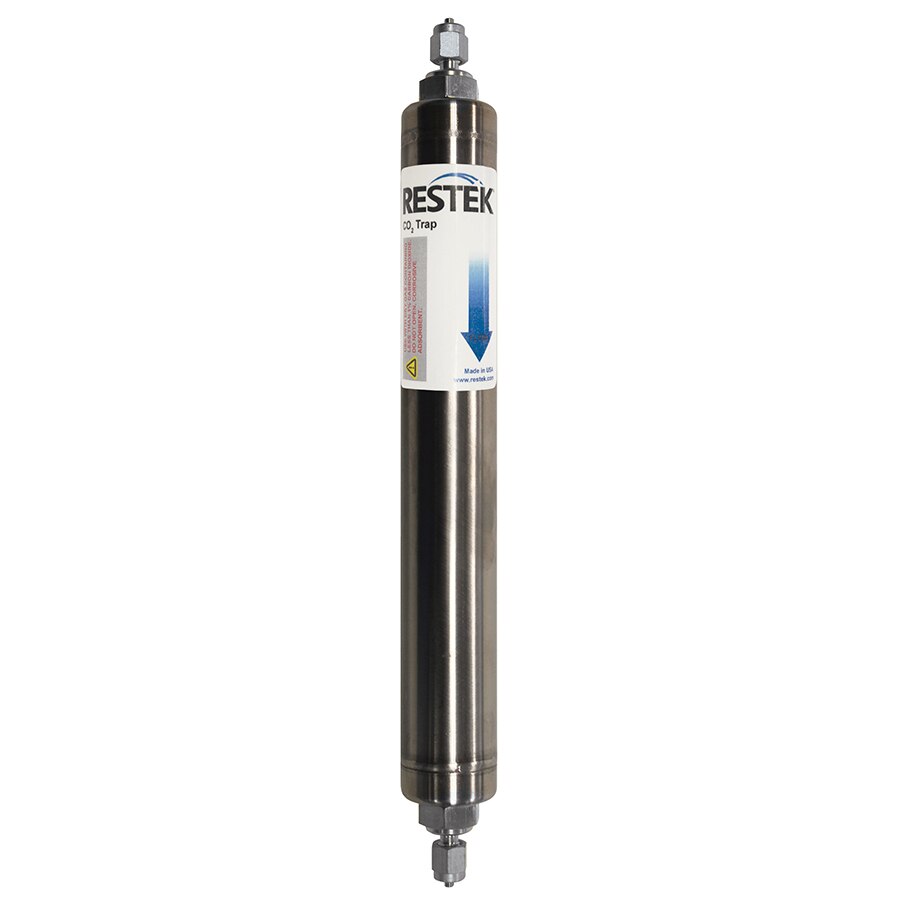

| CO2 cat.# 23816, 23817, 23818, 23819 |
68.9 bar/1000 psi | 1300 cc/min | He, N2, H2, Ar, Air | NA | | | | 19 | >1 |
Features & Benefits
- Removes carbon dioxide from inert gases He, Ar, N2, H2, and clean dry air (CDA) to low ppb levels.
- Functions by consuming carbon dioxide in a reaction with highly dispersed NaOH on a silicate support (reaction produces water that remains adsorbed in the purifier).
- In highly critical applications, consider using an additional moisture trap after the CO2 trap as a safety measure.
Note: Recommended for the inlet gas to have a moisture content of less than 10 ppmv (-60 °C dew point)
| Weight | 1.80 lbs |
|---|---|
| Dimensions | 13 × 6.40 × 2.80 in |
| Dimensions |
