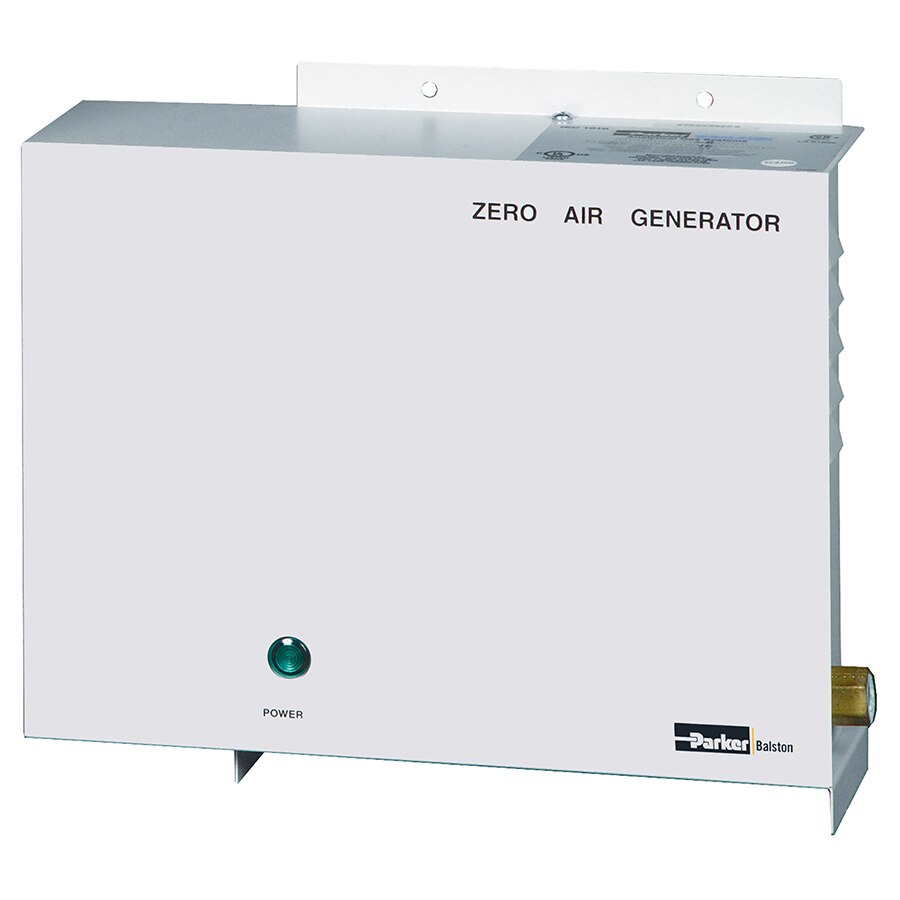

Parkers ChromGas ZAG generators provide a continuous stream of hydrocarbon free air from an external dry compressed air source, offering superior limits of detection over and above other modes of supply. Flow rates range from 1 L/min to 30 L/min and can support up to 75 flame detectors.
When combined with ChromGas H2F, the system forms a modular FID gas station suitable for all known GC combustion detectors such as FID, FPD, and NPD. Its state-of-the-art control system elevates both user-friendliness and performance monitoring.
Specifications for Parker Balston Zero Air Generators
| Maximum Zero Air Flow Rate: | 75-83NA ZAG3.5LNA ZAG7LNA ZAG18LNA ZAG30LNA |
1.0 L/min 3.5 L/min 7.0 L/min 18 L/min 30 L/min |
| Outlet Hydrocarbon Concentration (as methane): | 75-83NA ZAG30LNA Other Models |
< 0.1 ppm < 0.1 ppm < 0.05 ppm |
| Minimum/Maximum Inlet Air Pressure: | 40 psig/125 psig (276/862 kPa) | |
| Maximum Inlet Hydrocarbon Concentration (as methane): | 100 ppm | |
| Pressure Drop at Maximum Flow Rate: | 4 psi (28 kPa) differential | |
| Maximum Inlet Air Temperature: | 78°F (25°C) | |
| Inlet/Outlet Ports: | 1/4″ NPT (female) | |
| Start-up Time to Specified Hydrocarbon Concentration: | 45 minutes | |
| Electrical Requirements: | 75-83NA ZAG3.5LNA, ZAG7LNA ZAG18LNA, ZAG30LNA |
120 VAC/60 Hz, 0.5 amps 120, 220, 230, 240 VAC/60 Hz, 2.0 amps 120, 220, 230, 240 VAC/60 Hz, 4.0 amps |
| Dimensions: | 75-83NA Other Models |
10″ h x 12″ w x 3″ d (25 cm x 30 cm x 8 cm) 16″ h x 11″ w x 13″ d (42 cm x 27 cm x 34 cm) |
| Shipping Weight: | 75-83NA Other Models |
7 lb (3 kg) 41 lb (19 kg) |
| Model | Number of FIDs (based on a 450 cc/min fuel air rate) |
| 75-83NA | Up to 2 |
| ZAG3.5LNA | Up to 8 |
| ZAG7LNA | Up to 16 |
| ZAG18LNA | Up to 40 |
| ZAG30LNA | Up to 66 |
Features & Benefits
- Turn in-house compressed air into ultra-pure air.
- Remove hydrocarbons to less than 0.1 ppm by catalytic oxidation.
- Operate at 40125 psi (276862 kPa).
- Typical payback is less than one year based on cylinder costs.
- Installs easily and takes up little bench space.
- Maintenance kits include a one-year supply of prefilters and final filter.
Generator installation, warranty, and service plans are also available through Restek. Contact Restek Technical Service to arrange.
| Weight | 7 lbs |
|---|---|
| Dimensions | 3 × 12 × 10 in |
