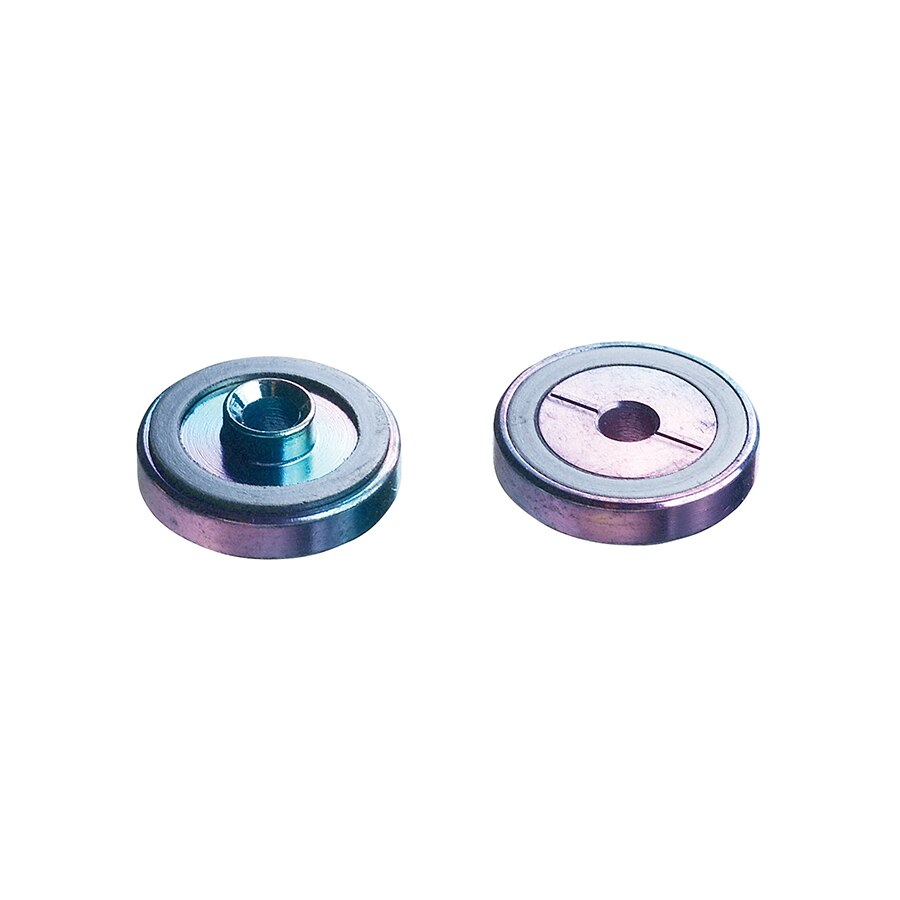

Our patented dual Vespel ring inlet seal greatly improves injection port performance—it stays sealed, even after repeated temperature cycles, without retightening the reducing nut! This seal features two soft Vespel/graphite rings, one embedded in its top surface and the other embedded in its bottom surface. These rings eliminate the need for a washer and ensure very little torque is needed to make a leak-tight seal. The rings will not harm the critical seal in the injector body, or any other surface, and are outside the sample flow path.
Features & Benefits
- Does not require a separate washer.
- Requires less torque to seal.
- Does not require retightening of reducing nut after several oven cycles.
- Extends column lifetime by preventing oxygen from reaching the column.
- Same price as the regular inlet seals with washers.
- Siltek treatment provides enhanced inertness versus stainless steel.
Product Specifications
| Units | 2-pk. |
|---|---|
| Column Type | Micropacked |
| Includes | Dual Vespel ring inlet seals, large bore (2) |
| Product Category | Inlet Adaptors |
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 6.50 × 6.50 × 4 in |
|
|---|
